Risers

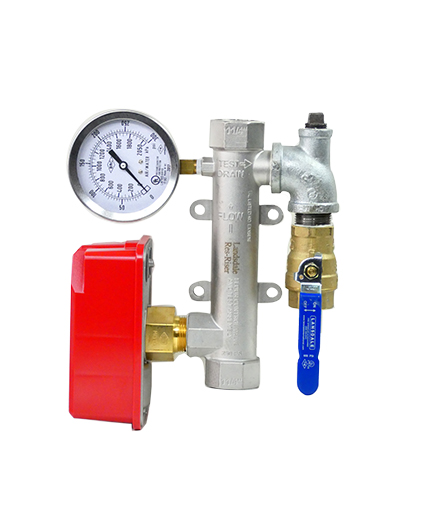

Residential Riser - Assembly

  • Lead Free stainless steel body construction with all brass trim
  • Factory assembled. Factory pressure tested at 200psi. (13.8 bar)
  • Choice of 3 kinds of trim: Basic Trim, Basic Trim with Pressure Relief Kit, Basic Trim with Test & Drain
  • Supply/System lines support for mounting. Along with a support bracket (to stud) and a recessed or flush mount (to wood panel)
  • NPT (female x female) connections
  • Slim design allows for easy installation within 2” x 4” x 16” centers wood frame construction
  • Optimum sensitivity is assured through a dedicated UL Listed and ULC Listed Water Flow Detector. Water Flow Detector is factory installed with a metallic, waterproof cover. Triggering flow rate is 4(15) GPM (LPM) to 10(38) GPM (LPM)
  • Patent Pending
